MBBR — Moving Bed Bio-Reactor

A compact, low-power alternative to conventional activated sludge treatment

MBBR (Moving Bed Bio-Reactor) technology is a better alternative to conventional wastewater treatment plants that are large-sized, power intensive and require constant monitoring. It offers an effective option where space and power are scarce.

Sewage passes through an equalization tank into the MBBR reactor, where free-moving biofilm carriers under constant aeration host the bacteria that break down organic load. A tube settler / clarifier separates treated water from biomass before it moves to tertiary treatment.

Supplied from 10 KLD to 2 MLD and above.

Process

Process Flow

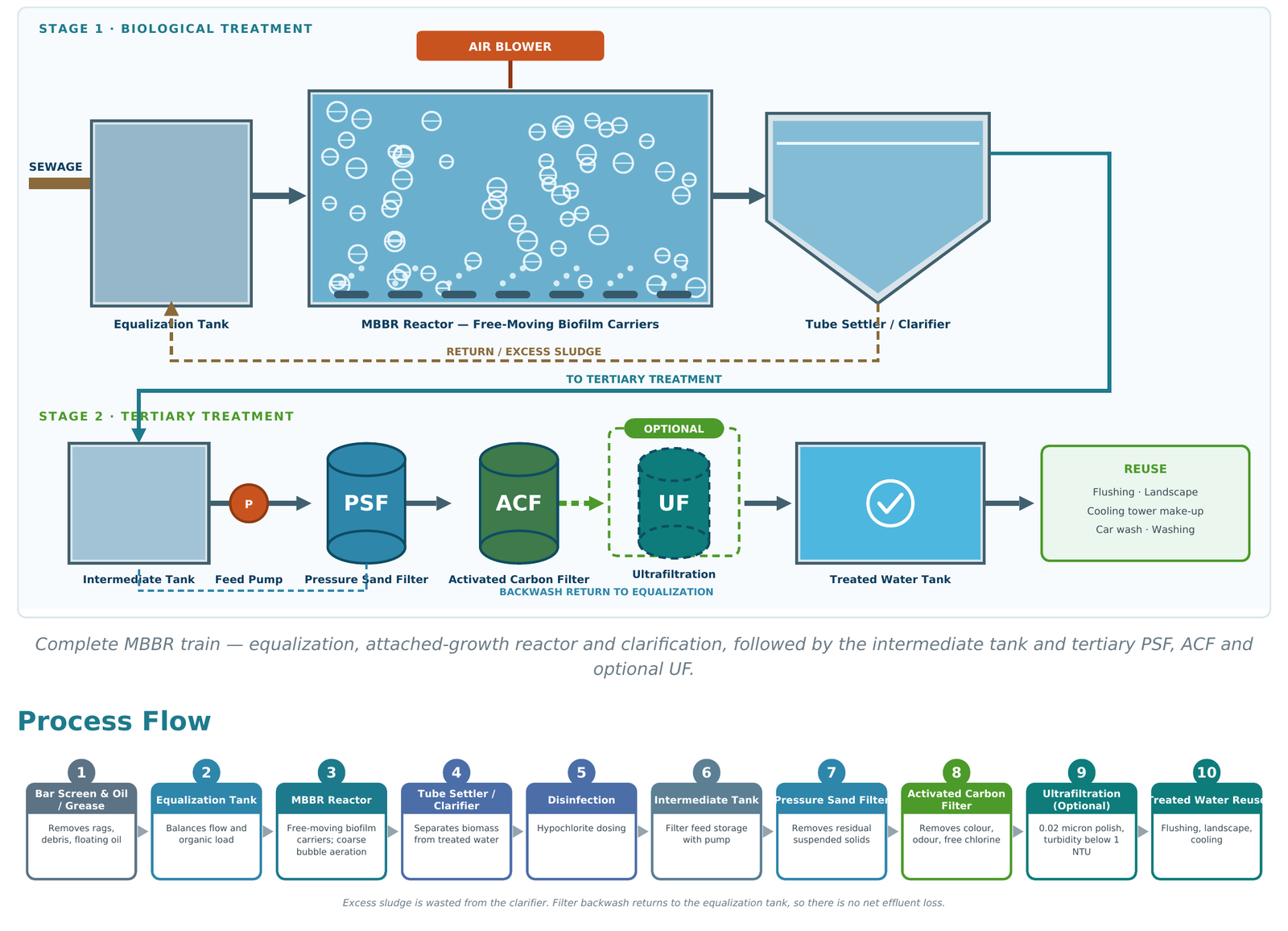

MBBR process flow diagram — equalization tank, MBBR reactor with free-moving biofilm carriers, tube settler, and tertiary PSF, ACF, optional UF treatment train
Advantages

Advantages of MBBR

  • Odourless operation with a self-regulating system.
  • High biofilm surface area — compact plants with high loading rates.
  • Reduced power consumption compared with conventional activated sludge.
  • Simple to operate, with low maintenance requirements.
  • Non-clogging design and better oxygen transfer efficiency.
  • Attached growth process — no sludge recycling, high MLSS maintained.
  • Easy to monitor; removes E. coli and coliform.
  • Capacity from 10 KLD to 2 MLD and above, in prefabricated or civil construction.
  • Recycling for gardening, flushing, car wash and cooling towers.
  • Tertiary PSF, ACF and optional UF for consistent CPCB reuse quality.

Considering MBBR for your site?

We'll size the reactor to your actual load and confirm it against your reuse requirement.
